Custom Palisade Fencing: get pricing & specs

Palisade fencing is a highly sought-after choice for securing residential, commercial, municipal, and industrial perimeters in South Africa. It not only provides a long-lasting and cost-effective fencing solution but also serves as a visual and physical deterrent.


With its exceptional durability, palisade fencing can be further reinforced by being galvanized, guaranteeing resistance against rust.


NJR Steel offers a comprehensive selection of panels, posts, pales, and a variety of spike designs.


Our Palisade fence options encompass:

.

  • Standard panel width of 3m
  • Heights available in 0.6m, 1.2m, 1.8m, 2m, and 2.4m
  • Spike variations include 3 spike, 5 spike, 7 spike, and spear spike
  • Coating options include uncoated, powder coated, or hot dipped galvanised

WHY CHOOSE NJR STEEL PALISADE FENCING?

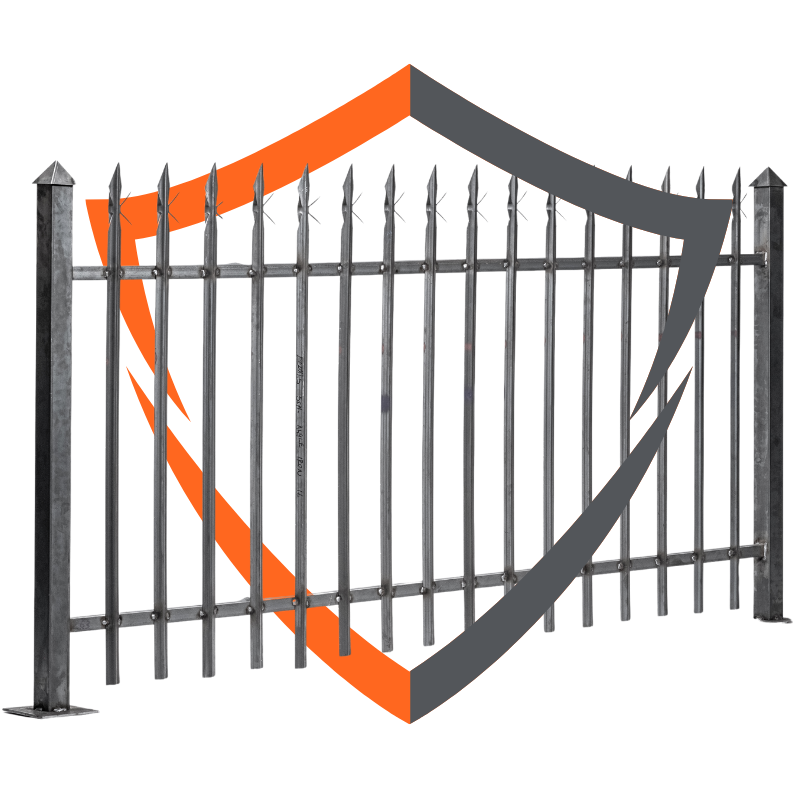

a metal fence with a shield in the middle of it .

STRONG & DURABLE

NJR Steel Palisade fencing offers a highly robust and long-lasting steel fencing solution that is resistant to rust. Our commitment lies in providing you with nothing but the finest quality palisade fencing.

EXCELLENT BOUNDARY SECURITY

Palisade is a highly sought-after choice for perimeter security due to its formidable climb resistance, exceptional strength, and the option to enhance boundary security with electric fencing.

CUSTOM PALISADE & GATE OPTIONS

Choose from a wide range of Palisade options to personalize your fence. We are able to create custom swing, sliding, and pedestrian gates to meet our clients' exact specifications.

EVERYTHING UNDER ONE ROOF

NJR Steel Branches offer an extensive selection of products, encompassing palisade fencing, screws, bolts, gates, electric fencing, steel paint, welding equipment, accessories, and so much more.

CONTACT US

VARIOUS OPTIONS TO CHOOSE FROM

3-SPIKE, 5-SPIKE, 7-SPIKE, & SPEAR SPIKE ICON

3-SPIKE, 5-SPIKE, 7-SPIKE, & SPEAR SPIKE

CUSTOM MADE GATES & PANELS ICON

CUSTOM MADE GATES & PANELS

ADD ELECTRIC FENCING ICON

ADD ELECTRIC FENCING

Palisade Fencing Sizes & Specifications

D50 Section cold rolled palisade

Material       Standard Heights
Cover Width Thickness     0,500 0,600 1,200 1,500 1,800 2,000 2,400
50 2,0   Kg's 0,442 0,531 1,061 1,326 1,592 1,768 2,122
50 2,5   Kg's 0,553 0,663 1,326 1,658 1,989 2,210 2,653
50 3,0   Kg's 0,663 0,796 1,592 1,989 2,387 2,653 3,183

D60 Section

Material       Standard Heights
Cover Width Thickness     0,500 0,600 1,200 1,500 1,800 2,000 2,400
63 2,0   Kg's 0,563 0,675 1,350 1,688 2,026 2,251 2,701
63 2,5   Kg's 0,703 0,844 1,688 2,110 2,532 2,813 3,376
63 3,0   Kg's 0,844 1,013 2,026 2,532 3,038 3,376 4,051

30 x 30 Econo

Material       Standard Heights
Cover Width Thickness     0,500 0,600 1,200 1,500 1,800 2,000 2,400
45 2,0   Kg's 0,402 0,482 0,965 1,206 1,447 1,608 1,929
45 2,5   Kg's 0,502 0,603 1,206 1,507 1,809 2,010 2,411
45 3,0   Kg's 0,603 0,723 1,447 1,809 2,170 2,411 2,894

40 x 40 Econo

Material       Standard Heights
Cover Width Thickness     0,500 0,600 1,200 1,500 1,800 2,000 2,400
60 2,0   Kg's 0,563 0,675 1,350 1,688 2,026 2,251 2,701
60 2,5   Kg's 0,703 0,844 1,688 2,110 2,532 2,813 3,376
60 3,0   Kg's 0,844 1,013 2,026 2,532 3,038 3,376 4,051

25 x 25 HR Angle

Material Standard Heights
Cover Width Thickness     0,500 0,600 1,200 1,500 1,800 2,000 2,400
35 2,0   Kg's 0,387 0,464 0,929 1,161 1,393 1,548 1,858
35 2,5   Kg's 0,475 0,570 1,140 1,425 1,710 1,900 2,280
35 3,0   Kg's 0,555 0,666 1,332 1,665 1,998 2,220 2,664

30 x 30 HR Angle

Material Standard Heights
Cover Width Thickness     0,500 0,600 1,200 1,500 1,800 2,000 2,400
43 2,0   Kg's 0,475 0,570 1,140 1,425 1,710 1,900 2,280
43 2,5   Kg's 0,585 0,702 1,404 1,755 2,106 2,340 2,808
43 3,0   Kg's 0,680 0,816 1,632 2,040 2,448 2,720 3,264

40 x 40 HR Angle

Material       Standard Heights
Cover Width Thickness     0,500 0,600 1,200 1,500 1,800 2,000 2,400
57 2,0   Kg's 0,643 0,771 1,542 1,928 2,313 2,570 3,084
57 2,5   Kg's 0,790 0,948 1,896 2,370 2,844 3,160 3,792
57 3,0   Kg's 0,935 1,122 2,244 2,805 3,366 3,740 4,488

Cross Member HR Angle

Material Length (Metres) KG's
40 x 40 x 2.0 HR Angle 3,0 3,855
40 x 40 x 2.5 HR Angle 3,0 4,740
40 x 40 x 3.0 HR Angle 3,0 5,610
40 x 40 x 5.0 HR Angle 3,0 8,910

Cross Member Open Channel

Material Length (Metres) Kg's
25 x 60 x 25 x 2.0mm Open Channel 3,0 5,310
25 x 60 x 25 x 2.5mm Open Channel 3,0 6,633
25 x 60 x 25 x 3.0mm Open Channel 3,0 7,959

Gate Track

Material Length (Metres) Kg's
D60 Gate Track 2.0mm 6,0 6,752
D60 Gate Track 2.5mm 6,0 8,44
D60 Gate Track 3.0mm 6,0 10,128

GET QUOTE
NJR Steel staff member

Popular Questions

Got a question? We’re here to help.

  • HOW MUCH DOES PALISADE COST?

    The price of palisade fencing depends on the application, the type of fence you choose, and how many metres you need. Contact us today to get the latest pricing.

  • DO YOU OFFER INSTALLATION?

    Yes we can arrange to have your fence installed for you by one of our partner installation teams. No job is too small or too big for us.

  • WHAT FENCE HEIGHTS DOES PALISADE COME IN?

    We offer many heights ranging from 0.3m to 3m. Please contact us for advice and specifications for your project.

  • DO YOU OFFER GATES?

    Our installation partners can provide you with both pedestrian and driveway gates.

HOW TO BUY PALISADE FENCING FROM NJR STEEL FENCING

  • Measure the approximate metres of palisade that you require.
  • Download our Palisade Fencing Catalogue at the top under “Technical Documents”
  • Browse the catalogue to get an idea of the different profiles and lengths available.
  • Click “Get A Quote” below and let us know what we can help you with.
  • A Fencing consultant will contact you with your quote and discuss all the options with you.
  • NJR Steel strive to be first for steel in all areas, especially palisade fencing.


Contact us today for friendly service, helpful advice and a competitive quote!

A FENCE FOR EVERY NEED.

GET PRICING TODAY.

We have 26 branches across 7 provinces that are ready and willing to help you. Talk to us today to get pricing or just advice for your next project.
